Navigation buoys

Navigation Buoys

Navigation buoys are among the most important aids to navigation at sea. These floating markers guide sailors through harbors, rivers, coastal waters, and offshore routes, helping vessels avoid hazards and follow safe channels. Long before GPS and electronic charts, buoys formed a visual system that allowed mariners to read the water at a glance.

Buoys are not placed randomly. Their colors, shapes, lights, and sounds all carry specific meaning. Together, they form a standardized maritime language understood by sailors around the world.

What Are Navigation Buoys Used For?

Navigation buoys serve several critical purposes: • Marking safe channels and fairways  • Indicating shallow water, rocks, wrecks, or reefs  • Showing the edges of navigable waters  • Identifying special areas such as anchorage zones or restricted waters  • Providing reference points for position fixing  In poor visibility, strong currents, or unfamiliar waters, buoys often become the most reliable guide for safe navigation.

The IALA Buoyage System

To avoid confusion between different countries, the International Association of Marine Aids to Navigation and Lighthouse Authorities (IALA) established a global buoyage system. While the system is standardized, it is divided into two regions, which differ in color usage.

IALA Region A  Used in Europe, Africa, Australia, New Zealand, and most of Asia.

• Red buoys mark the port (left) side of the channel when entering from the sea

• Green buoys mark the starboard (right) side

A common memory aid used by sailors in Region A is: “Red to port when returning.”

IALA Region B

Used in the Americas, Japan, South Korea, and the Philippines.

• Red buoys mark the starboard (right) side

• Green buoys mark the port (left) side

This difference is critical for sailors moving between regions — many groundings have happened simply because a crew followed the wrong color logic.

Shapes, Numbers, and Lights

Color alone is not enough. Buoys also communicate through shape, numbering, and light characteristics.

• Port-hand buoys are usually cylindrical (can-shaped)

• Starboard-hand buoys are usually conical

• Numbers increase as you move inward from the sea

At night or in fog, buoys may be fitted with lights. Each light has a unique rhythm - flashing, quick flashing, or long flashes - allowing sailors to identify a buoy even when its shape or color is hard to see. Some buoys are also equipped with sound signals such as bells, whistles, or horns, activated by wave motion, which can be invaluable in poor visibility.

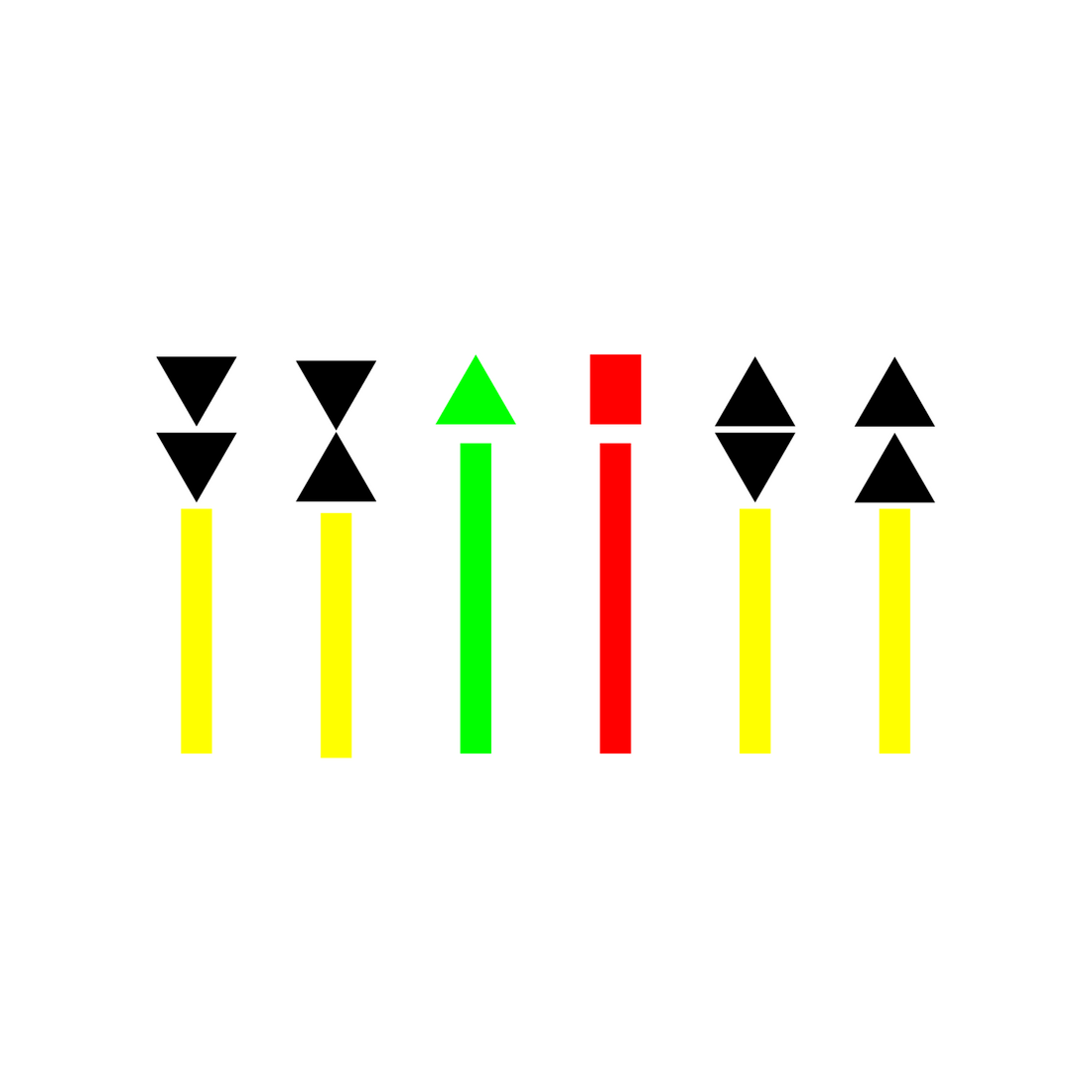

Cardinal Buoys

Not all buoys mark channels. Some provide directional or informational guidance.

Cardinal Buoys

Cardinal buoys show safe water relative to a hazard, using the compass directions North, South, East, and West. Instead of red and green logic, they tell sailors which side of the buoy is safe to pass, regardless of the channel direction.

Cardinal buoys use flashing light patterns that follow the face of a clock to indicate where safe water lies:

• North – continuous flashing (always on)

• East – 3 flashes (3 o’clock)

• South – 6 flashes (6 o’clock)

• West – 9 flashes (9 o’clock)

Once you know the clock rule, cardinal lights become instantly readable.

Special Mark Buoys

Usually yellow, these mark special areas such as:

• Anchorage zones • Cable or pipeline areas • Military exercise zones • Scientific research sites. They do not indicate safe water but warn the sailor to proceed with caution.

Why Buoys Still Matter in the Age of GPS

Modern navigation relies heavily on GPS, chart plotters, and radar - but buoys remain critical. Electronics can fail, batteries run out, and screens can mislead if data is outdated. Buoys, by contrast, are physical, visible, and constantly updated by local authorities to reflect real conditions.

Experienced sailors cross-check electronic navigation with visual aids. Seeing a buoy exactly where the chart says it should be is one of the strongest confirmations that everything is correct.

Fun fact: The tallest navigation buoy in the world stands in the North Sea off the coast of Germany. At approximately 16 meters high, it rises nearly as tall as a five-story building and serves as both a buoy and a landmark.

***
